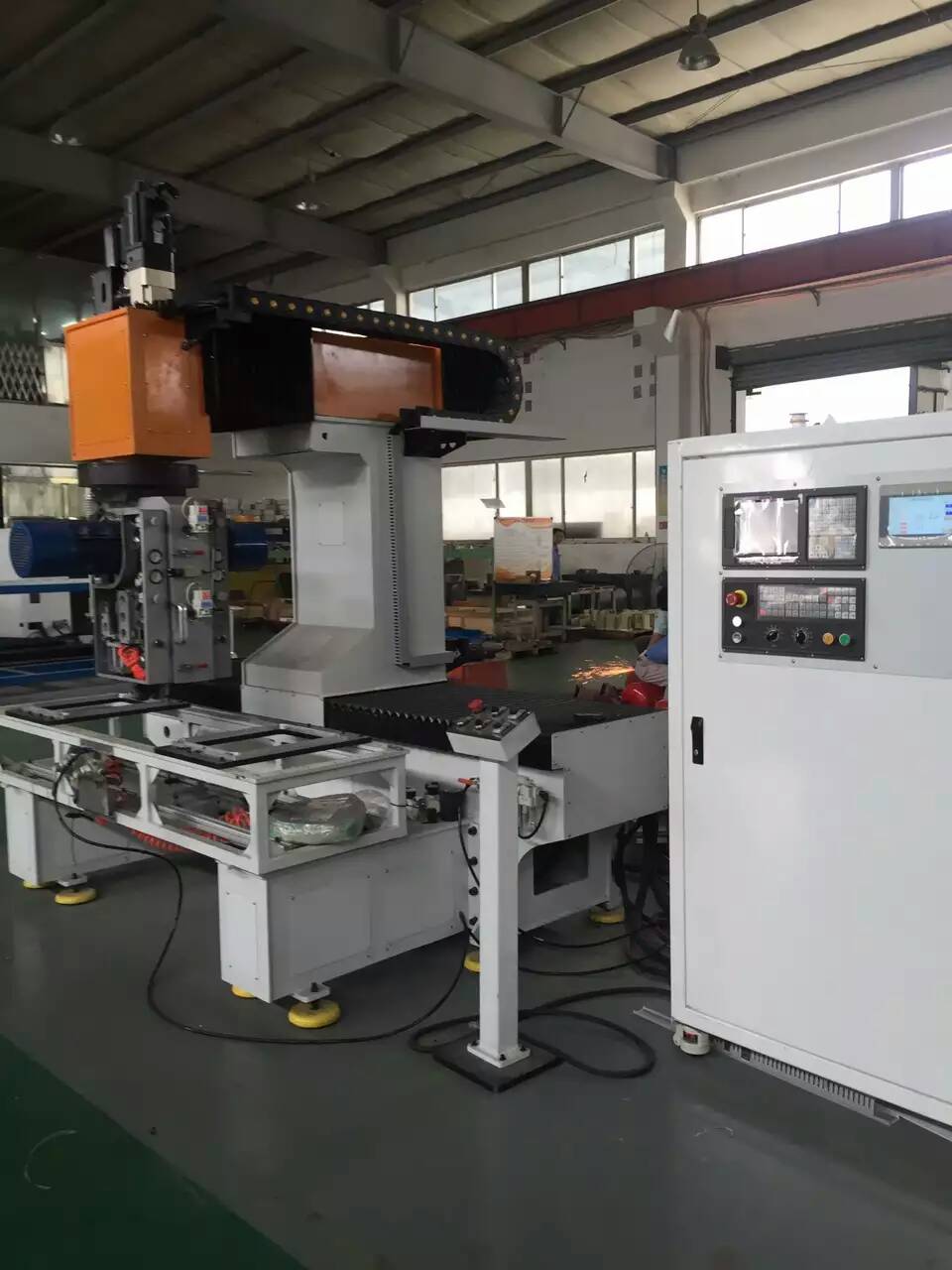

洗手盆自动化打磨专机
  • 洗手盆自动化打磨专机
洗手盆自动化打磨专机

所属类别:用专自动化点焊机系列

产品规格:

详细内容

适用范围

适用于不锈钢水槽平面及板材的平面抛光处理,抛光可达到哑光或镜面效果。设备结构好,运行平稳,操作方便,各种样式水槽一次装夹,按下按扭即可完成整个平抛工序。

Features

Suitable for grinding and polishing the welding seam of stainless steel sink.Polishing can achieve matte or mirror effect.The machine structure is good with stable and easy operation.One time fixing for various kinds of sink.Press the button then it could finish the whole polishing process automatically.

产品概述

CNC水槽打磨抛光专科机是利用砂带抛光的原理,用电机带动砂带传动,对已经焊接好的水槽边缘进行打磨抛光处理,分两个工序打磨,即先用粗砂带把多余的边框切割或者把比较高的焊点打磨,然后再用细砂带抛光处理,经过两个工序的打磨和抛光后基本达到要求;设计采用三菱专业自动控制系统,只需输入产品位置的坐标数据,启动设备后砂带轨迹在预设定的程序中即可自动完成产品打磨、抛光两个工序,只需人工摆放、取出工件即可。节能、环保、效率高、一致性好,真正解决了水槽打磨抛光用工难题。

Description

This CNC sink grinding special machine utilizes abrasive belt polishing principle.The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink.There are two processes for polishing.Firstly,use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots.Then use the fine abrasive belt to conduct polishing treatment.After these two processes can meet the requirement of sink grinding and polishing treatment.lt is designed to use Mitsubishi professional automatic control system.You only need to input the coordinate data of the product and start the machine,the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program.The worker only needs to put and take out the sink.Energy saving,Eco-friendly,high efficiency,good consistency.Solve the labor difficulty for sink grinding and polishing.

技术参数Technical Parameters

输入电源 lnput Power

三相380V±10%  50Hz Three-phase

额定容量 Rated Capacity

15KVA

砂轮直径Grinding Wheel Diameter

50mm

砂带宽度 Abrasive Belt Width

50mm

砂带转速 Abrasive Belt Rotate Speed

1400-2800mm/min 可调 Adjustable

X轴移动范围X Axis Moving Range

1220mm

Y轴移动范围Y Axis Moving Range

620mm

Z轴移动范围 Z Axis Moving Range

250mm

A轴旋转范围A Axis Rotating Range

360°

额定气源压力Rated Air Pressure

0.8MPa
