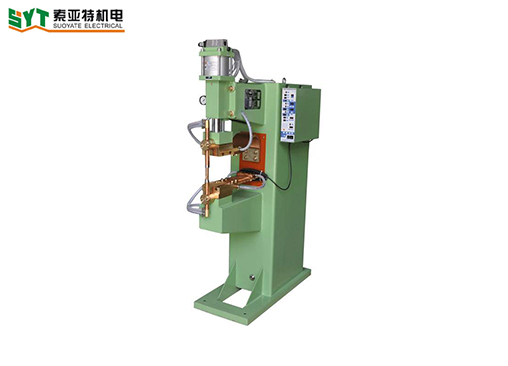

Pneumatic AC PulseSpot welding Series

交流脉冲式点焊机系列

WL-S-25/35/50k  KD5控制器

产品概述

该系列焊机利用普通市电，经过变压器的作用，使电压降低而电流加大。此种低电压的大电流经电极送至工作件的结合部位，在接合处，由于工件间的电阻因素而产生高温，金属受此高温产生高热，使工件处于熔融状态，从而达至两工件熔接的目的。可焊接厚达10mm铁及不锈等金属，适合各类型五金制品。熔接电流强而有力，精确的电流控制，可控硅的导通角分成1000份调节，以配合不同厚度产品之焊接。采用数字集成电路控制，抗干扰能力强，工作稳定可靠。控制电路内置来电电压波动补偿电路，能保证电源波动+15%范围内及时作出电流补偿，确保焊接电流稳定。

Description

Under the operation of transformer,pneumaticAC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current.Such kind of low voltage but large current will be transmitted frm the electrode to the linked point of two work pieces.On the linkage,due to the resistance of work piece,high temperatue will occur so the metal will therefore generates high heat to make the work pieces in molten condition.Thus,the purpose of welding the two work pieces is achieved.lt can be used to weld 10mm of iron and metals like stainless steel.Applicable to all kinds of hardware.Powerful and strong welding current and precise current control.ln order to welding different thickness of products,conduction angle of silicon controlled rectifier is divided into 1000 parts for asjusting.Using digital integrated circuit control,strong anti-interference ability,stable and reliable work.Control circuit calls the built-in voltage fluctuation compensation circuit,which can guarantee the stable and reliable work.Control circuit calls the built-in voltage fluctuation compensation circuit,which can guarantee the power supply fluctuation within+15% range in a timely manner to make current compensation,ensure stable welding current.

性能特点

1.       特殊设计一体化加压汽缸，确保加压的稳定性和随动性及焊接速度。

2.       多同路强制水冷却系统，保证长期运行可靠性，稳定性。

3.       上下电极采用带辅助行程的加压方式，提高焊接时的可操作性、通用性。

4.       可任意调整加压电极速度，减缓了对被焊接物体加压时的冲击，也减少了焊接时的噪声。

5.       提高了焊接稳定性，对特殊材料可作预热、整形、回火处理、避免因电流分流而造成的虚焊、脱焊。

WD-10AC控制器：数字电路、拨码调节，单次放电，来电电压波动时自动焊接电流补偿，具有电流爬升功能，逐渐增加的电流可以十分有效抵制或减低火花的飞溅。

WD-KD5控制器：微电脑控制，多段放电，对特殊材料可作预热、熔接、整形或回火处理，解决了多点凸焊中因电流分流而造成的虚焊、脱焊等缺陷，尤其对高碳钢、特殊夹层金属板也能焊接自如，可记忆15种焊接规范，来电电压波动时自动焊接电流补偿。

Features

1.       Special design integration of pressurized cylinder which can ensure stability and mobility of pressurized and welding speed.

2.       Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.

3.       Upper and lower electrode adopt supplementary stroke pressurized mode which can improve the operability of welding process.

4.       Pressurized electrode speed can be adjusted,slow down the impact to welding work piece when pressuring,also reduces the noise when welding.

5.       Lnrease welding stability.lt can be used to preheat,to weld,to reform or to temper for special materials;Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding.WD-10AC Controller:Digital circuit;Codes dialing regulating;Single discharge;When the voltage of power supply is fluctuated,it can automatically compensate the current to weld;Possesses the function of current climbing and the gradually increased current can effectively curb or reduce the welding splash.

WD-KD5Controller:lntelligent microcomputer control;Multiple-section of discharge;it can be used to preheat,to weld,to reform or to temper for special materials;Solve the problems of void welding or loose welding due to current shunt during the process of muItipIe projection weIding;EspeciaIIy suitabIe for weIding high-carbon steeI or specaiIinterIayer of metaIpIate;Be abIe tomemorize 15types of weIding modeI;When the VoItage of power suppIy is fIuctuated,it can automaticaIIy compensate the current to weId.

适用范围

适用于碳钢板和不锈钢板的点焊、凸焊。铁线制品、五金灯饰、餐厨用具、汽车工业、小家电、小五金等。

Application

Suitable for spot welding or projection welding of steel plate and stainless steel sheet.lron wire products,hardware decorative lighting,kitchen utensils,automobile industry,small household appliances,small hardware,etc.
